High Efficiency plasma heating machine Equipment

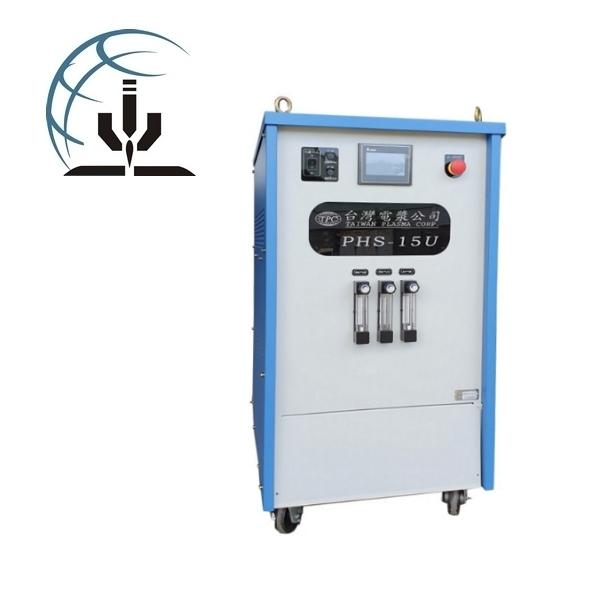

15KW Plasma Heating Machine

Model : PHS 15U

The plasma heating system not only provides a higher temperature environment, but is also faster to achieve high temperatures, able to use different gases to achieve different temperatures and effects on the result, and can directly disintegrate matter in an oxygen-starved environment.

With Cold-Cathode Plasma Torch
Model PHS-15C PHS-40C PHS-100C
Input Voltage 3 phase, 220/380/415V, 50/60Hz
Output Current 50A 100A 200A
Output Voltage 300V 400V 500V
Rated Output Power 15KW 40KW 100KW
Input Power 18KVA 45KVA 110KVA
Duty Cycle 100% (24hr) @40°C
With Thermal-Cathode Plasma Torch
ModelPHS-12TPHS-36T
Input Voltage3 phase, 220/380/415V, 50/60Hz
Output Current250A500A
Output Voltage60V80V
Rated Output Power15KW40KW
Input Power18KVA45KVA
Duty Cycle100% (24hr) @40°C
