Steel Fabricating and Processing

Structural steel fabricating and processing machinery

KOTEC SYSTEM offers a comprehensive range of high-performance, reliable structural steel fabricating and processing machinery, designed for customization and efficiency in steel construction industries worldwide.

Core Product Lines and Capabilities

KOTEC SYSTEM specialized industrial machinery caters to structural steel fabrication, featuring machines tailored to various structural processes such as:

Robot Coping & Drilling Machines:

Equipped with 6-axis robots for complex cutting, drilling, beveling, and hole processing, supporting versatile shapes like T-bar, wave, and taper cutting, featuring synchronized robot and carriage control and database support for repeat patterns.

Beam Drilling & Sawing Tandem Lines:

Designed for fast drilling with tungsten carbide drills, simultaneous drill and cut operations controlled by a single operator, and automated cutting with angles from -45° to +60°. These lines save workspace and offer precise material feeding via servo-controlled carriages.

Band Sawing Machines:

Featuring servo control for high-speed cutting with adjustable miter angles (max 45°), linear motion guides for blade stability, and varied capacity ranges up to 1300×600 mm for multiple steel profiles (round, square, bundle).

H-Beam Processing & Drilling Machines:

Capable of processing large H-beams up to 1,300×600 mm dimensions, boasting fast and precise drilling with spindle movement along the beam length, easy data input interfaces, and servo-driven material feeding.

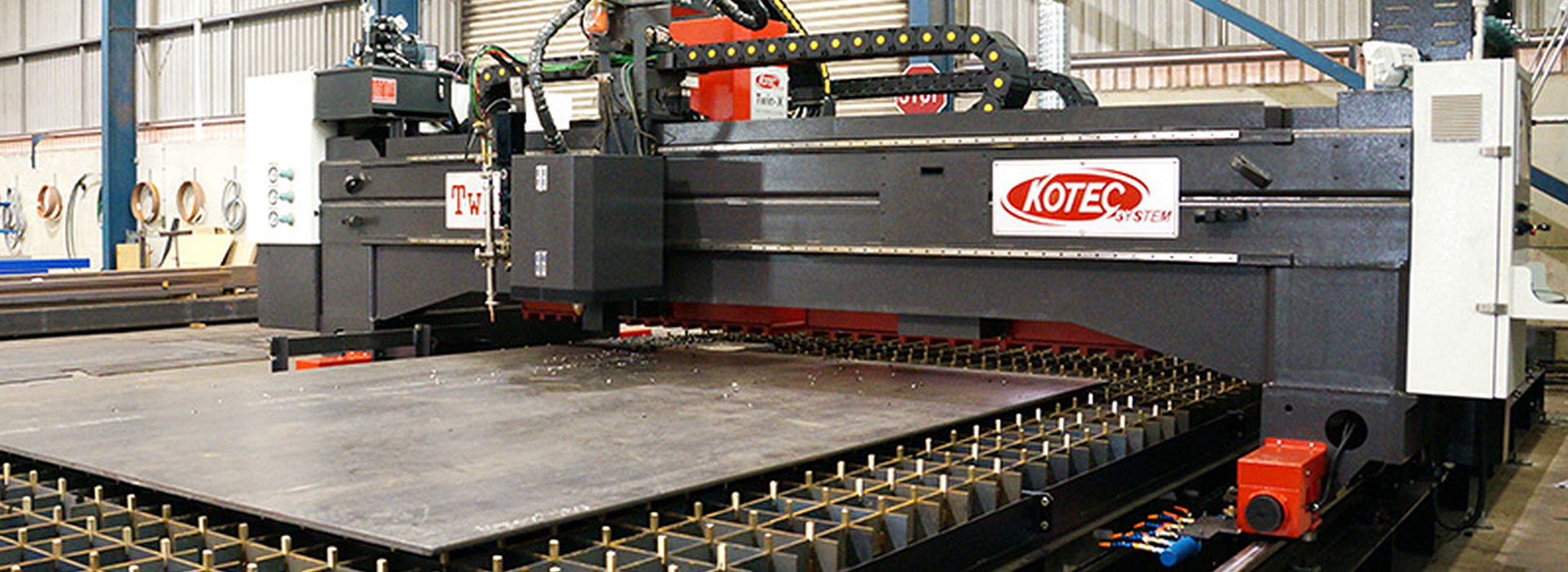

Plate Drilling, Cutting & Plasma/Gas Cutting Machines:

Offering multi-axis drilling for plates, gas and plasma cutting with CNC gantry travel, nest cutting software, and features for automatic torch control and accurate bevel cutting.

Welding Machines:

Includes submerged arc and gantry-type automated welding systems designed to enhance fabrication quality and efficiency.

Technical Highlights and Features

  • High Precision & Speed: Use of tungsten carbide drills, servo systems, and CNC controls ensure fast, accurate machining and cutting.
  • Versatility: Machines support a range of steel shapes and sizes, including plates, beams, angles, and complex structural sections.
  • User-friendly Interfaces: Easy data input and human-machine interfaces for efficient operation and programming.
  • Customization & Service: Dedicated custom machinery options and a global service network ensure client satisfaction and tailored solutions.

Machine Specifications (Representative Examples)

Robot Coping Machine Models

  • K-master 13: Processes H-beam sizes up to 1300×600 mm, weighing around 10,000 kg.
  • Drill bit capacity ranges: 10 to 40 mm diameter tungsten carbide drills.

    • Beam Drilling & Sawing Tandem Line

  • NewRun 13DX TANDEM LINE: Carriage stroke 13m, processes beams max 1300×600 mm.
  • Drill capacity: Tungsten carbide drills Ø12–40 mm.
  • Suitable for simultaneous precision drilling & angle cutting.

    • Band Sawing Machines (DIAMOND Series)

  • Models like DIAMOND-1300TS with cutting capacity of round steel up to Ø 600mm, and bundle sizes up to 1300×430 mm.
  • Servo speed control and miter angle adjustment for customized cuts.

    • Plate & Gas/Plasma Cutting Machines

  • CNC Gantry travelling controllers with cutting widths from 3200 mm to 6400 mm.
  • Digital control of cutting torches and optional nesting software to optimize material use.
